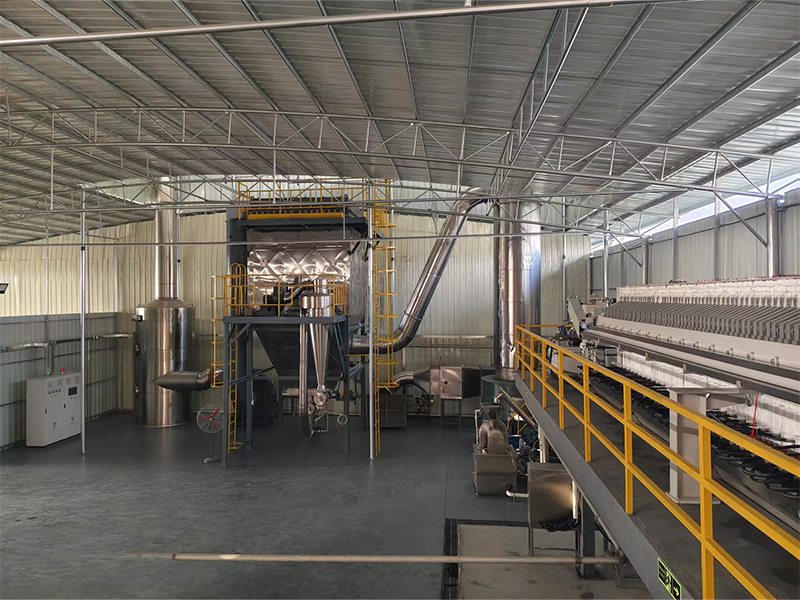

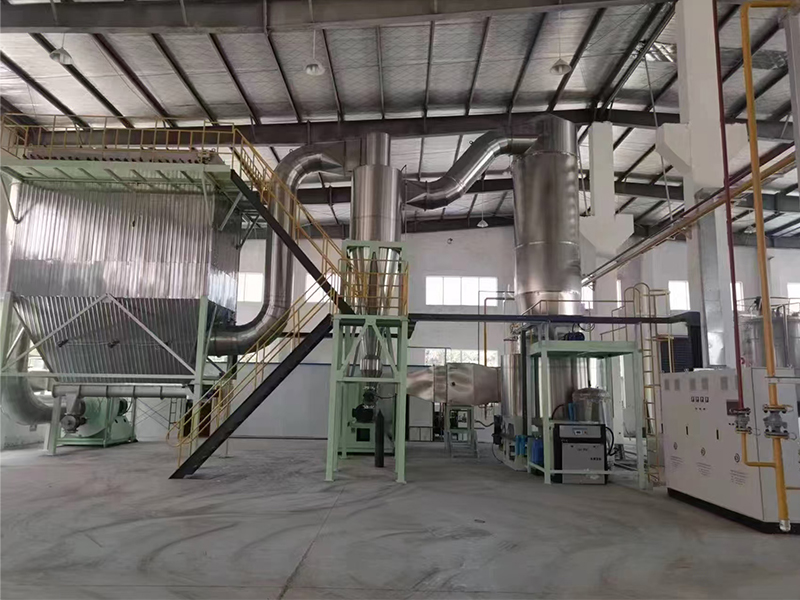

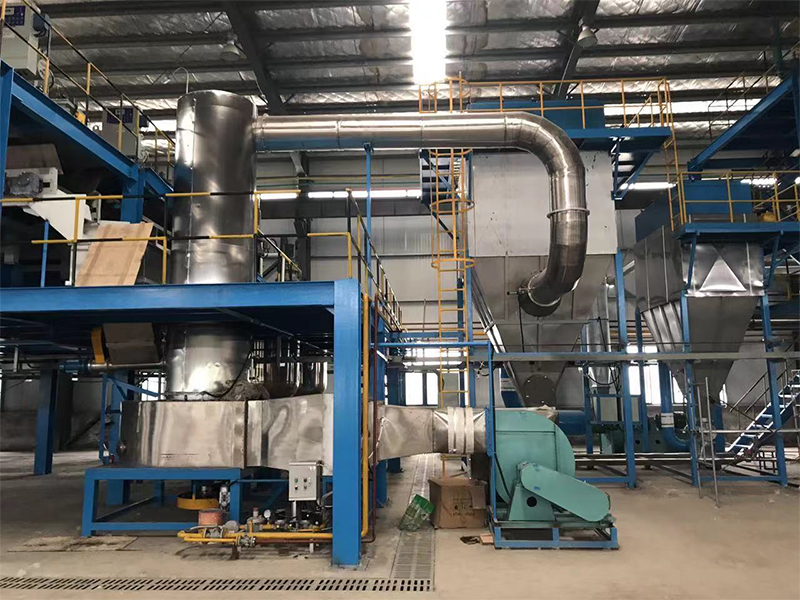

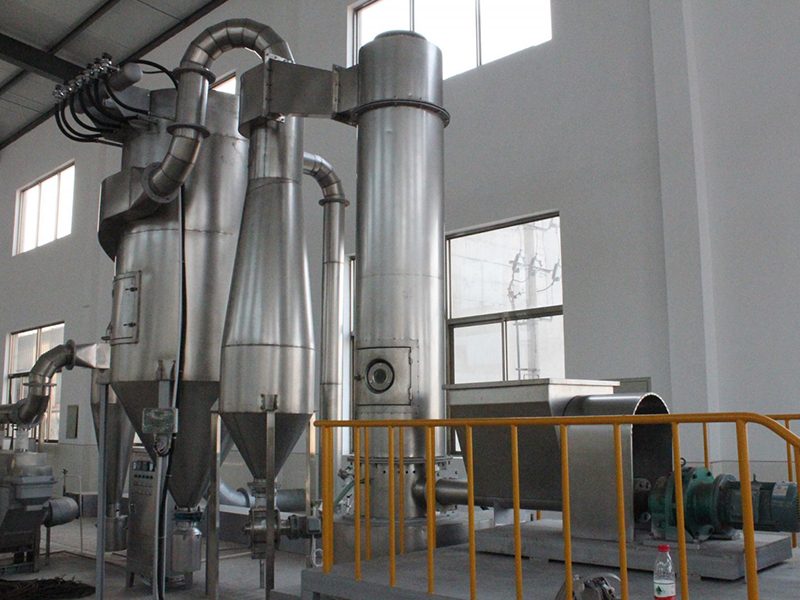

XSG Rotary Flash Dryer Equipment

XSG Rotary Flash Dryer Equipment Details

The XSG rotary flash dryer is a highly efficient dryer equipment that integrates dryer, crushing, and screening functions. It is suitable for the dehydration of high-viscosity, heat-sensitive materials in chemical, food, ceramic, and other industries.

Its working principle is based on the rapid and thorough contact between hot air and wet materials to achieve rapid dryer. Specifically, hot air enters the bottom of the dryer tangentially, while the agitator starts working, creating a powerful rotating airflow. Wet materials are fed into the dryer through a screw feeder. In the high-speed rotating environment, the materials are subjected to strong impact, friction, and shear forces from the agitator blades. This not only rapidly disperses the material, but also breaks down large lumps into smaller particles, allowing for sufficient contact with the hot air for heating and dryer. The product meeting the required particle size is then separated by a classifier.

Application Fields

1. Organic Materials: Atrazine (pesticide), lauric acid, benzoic acid, benzoin, fungicide, sodium oxalate, cellulose acetate, organic pigments, etc.;

2. Inorganic Materials: Borax, calcium carbonate, manganese carbonate, barium carbonate, cerium carbonate, zinc carbonate, hydroxides, copper sulfate, calcium sulfate, zirconium oxide, iron oxide, antimony trioxide, aluminum hydroxide, precipitated silica, anhydrous sodium acetate, sodium citrate, basic aluminum sulfate, various metal hydroxides, various heavy metal salts, synthetic cryolite, etc.;

3. Dyes: Anthraquinone, black iron oxide, indigo pigment, butyric acid, titanium hydroxide, zinc sulfide, various azo dye intermediates;

4. Food Products: Soy protein, gelatinized starch, distiller's grains, wheat sugar, wheat starch, vitamin B, uridine, etc.;

5. Dyestuffs: Phthalocyanine blue, sulfurized reddish-brown, basic brilliant yellow, oil-soluble black, sulfurized blue, lead chromate yellow, BVG-red, etc.;

6. Pesticides: Cartap, monocrotophos, dicofol, paclobutrazol, methomyl, mancozeb, tricyclazole, etc.

Specifications and Parameters

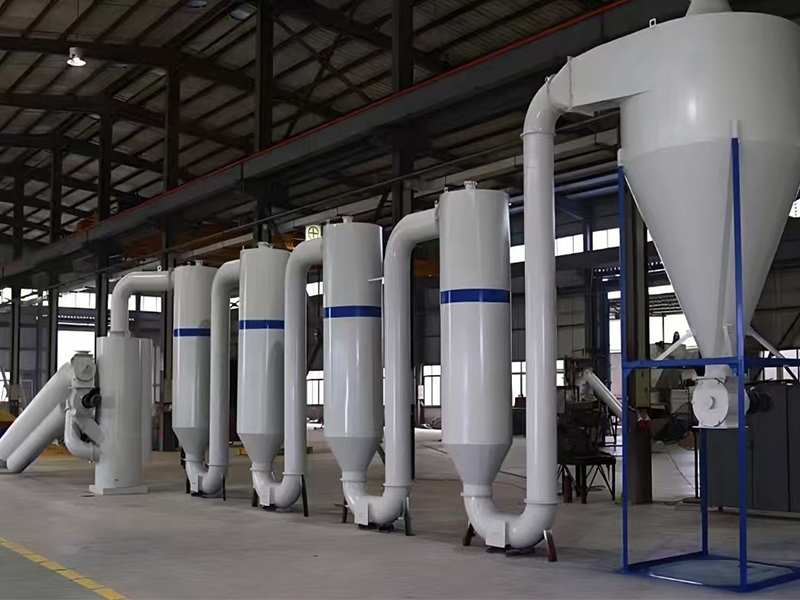

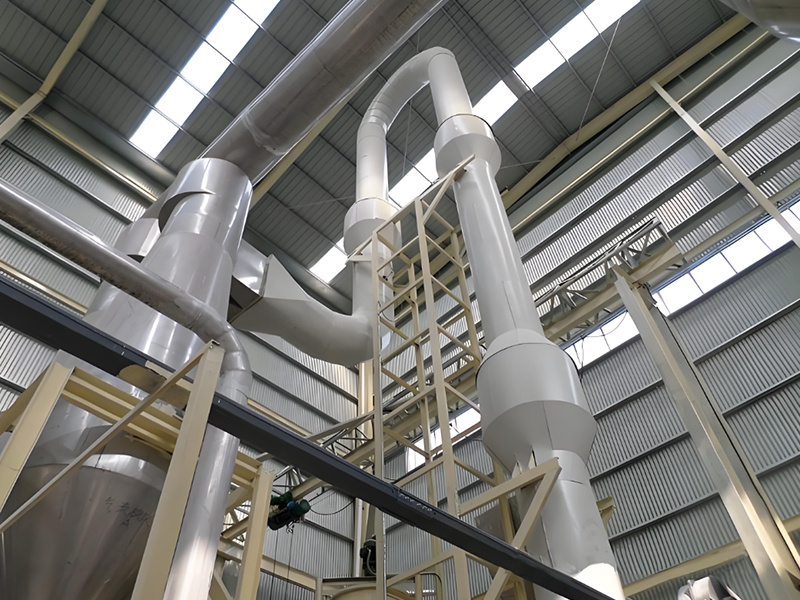

MQG Airflow dryer Equipment Details

Airflow dryer equipment is a continuous dryer system that utilizes a high-speed hot air stream to suspend and dry wet materials.  It is suitable for the rapid dryer of heat-sensitive, fine-grained materials, with dryer times of only 0.5-2 seconds and thermal efficiency reaching 60%-90%. Its core advantages lie in its high dryer intensity, large processing capacity (evaporation capacity of 50-1500 kg/h), simple equipment design, and low investment cost, making it widely applicable.

Equipment Features

High dryer intensity: High airflow speed, good particle dispersion, and large effective dryer area.

High thermal efficiency: Co-current operation of gas and solid phases, high hot air temperature, and low product temperature.

Simple equipment: Small footprint, low investment, and stable operation.

Wide range of applicable materials: Heat-sensitive, fine-grained materials with particle sizes below 10mm.

Application Scope

Applicable materials: Powdered materials in chemical, pharmaceutical, food, building materials, plastics, and other industries, such as starch, fish meal, salt, distiller's grains, feed, gluten, plastic resins, mineral powder, coal powder, gluconic acid, A.S.C. benzoic acid, 2.3-acid, polypropylene, sodium sulfate, sodium metabisulfite, etc. Special Materials: Materials with high moisture content and those that are pasty or sticky, such as precipitated silica, vinyl acetate and vinyl chloride copolymers, cellulose acetate flakes, catalysts, CMC, CT-1 resin, calcined gypsum, electrolytic manganese dioxide, anthraquinone sulfonic acid ammonium salt, fluorite, diatomaceous earth, silica gel catalyst, bone meal, kaolin, potassium perchlorate sulfonamide drugs, synthetic resins, active gluten, activated clay, chemical filter cake, rutile titanium dioxide, sebacic acid, copper sulfate, aluminum sulfate, sodium sulfate, calcium phosphate, phosphorylated starch, dyes, calcium citrate, coal slime, dough-like bread ingredients and rice bran, clay, clay cement, urea, bentonite, spherical clay, aluminum hydroxide, barium hydroxide, calcium lactate, food products, washed kaolin, melamine, gypsum slurry, lime, biological products, carbon black, calcium carbonate slurry, sludge residue, organic chemicals, aluminum stearate, iron, organic dyes, corn protein feed, sewage sludge, mica powder, pharmaceuticals, pigments, potassium dichromate pulp, distiller's grains residue, etc.

Specifications and parameters
