SZG Series Double Cone Rotary Vacuum Dryer Detailed

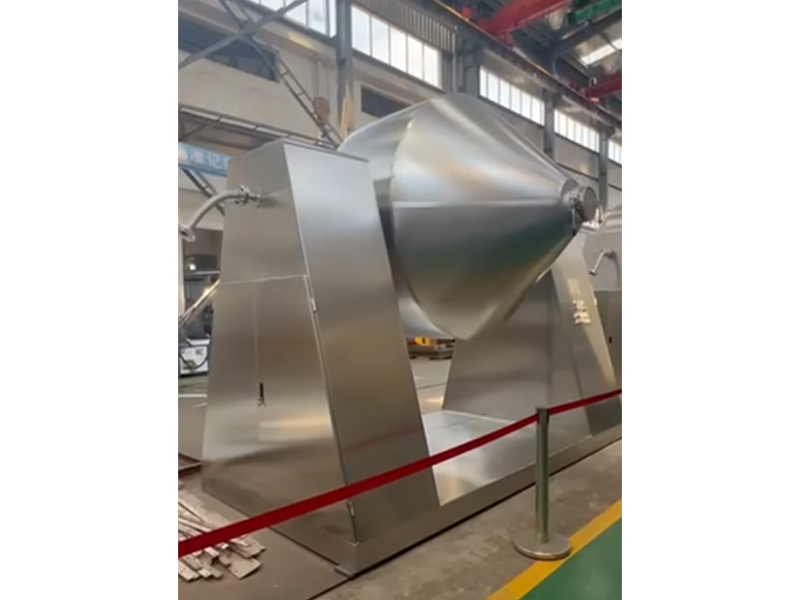

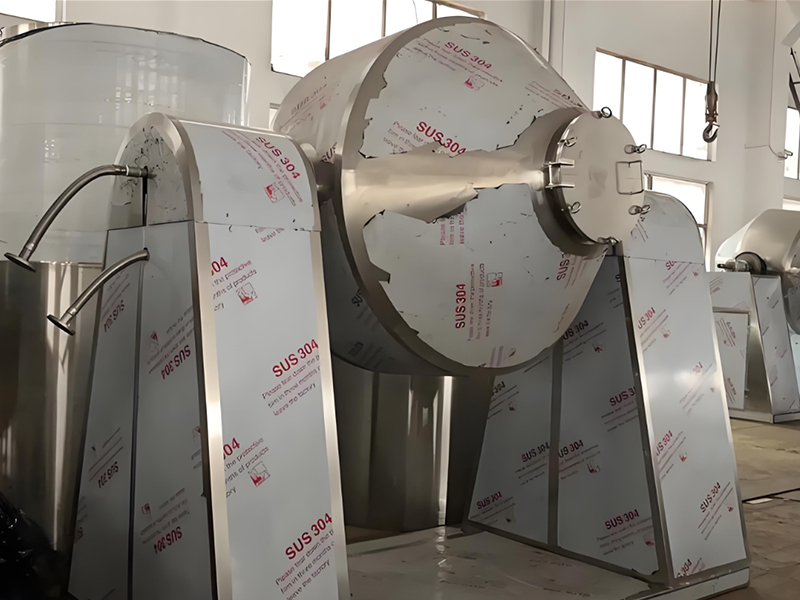

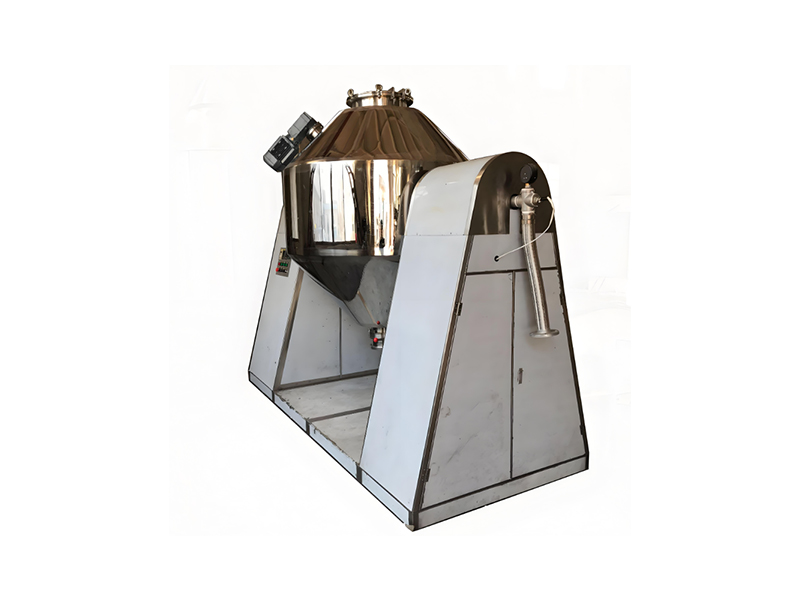

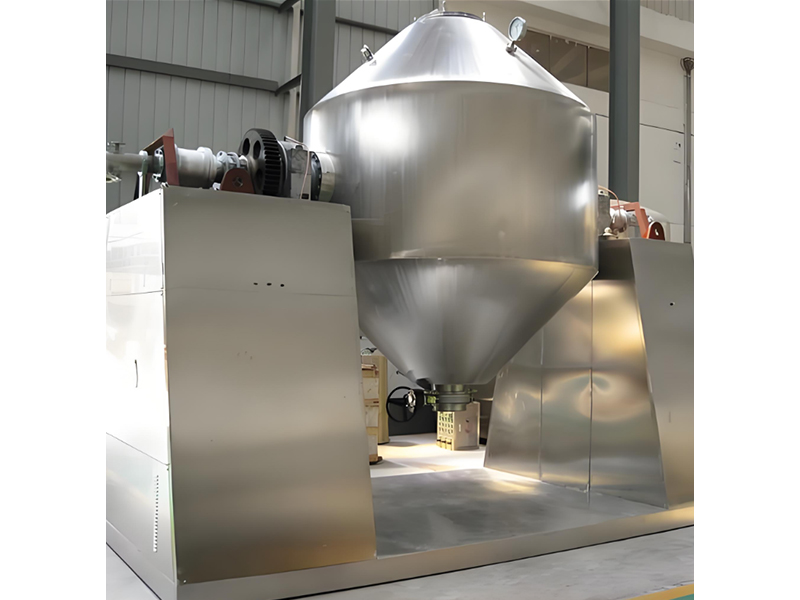

SZG Series Double Cone Rotary Vacuum Dryer Detailed Introduction

The SZG double cone rotary vacuum dryer is a double-conical rotating tank.  Under vacuum conditions, heat transfer oil or hot water is introduced into the jacket for heating. The heat is transferred to the wet material through the inner wall of the tank. The water vapor evaporated from the wet material after absorbing heat is drawn away by a vacuum pump through a vacuum exhaust pipe. Because the tank is under vacuum and the rotation of the tank causes the material to constantly move up and down, inside and out, the dryer speed is accelerated, the dryer efficiency is improved, and uniform dryer is achieved. The double cone rotary vacuum dryer is a new type of dryer that integrates mixing and dryer. A condenser and vacuum pump are used in conjunction with the dryer to form a vacuum dryer device. (If solvent recovery is not required, the condenser can be omitted.) This machine has an advanced design, a simple internal structure, is easy to clean, allows for complete material discharge, and is easy to operate. It reduces labor intensity and improves the working environment. Because the material rotates with the container, but does not accumulate on the container wall, the heat transfer coefficient is high, and the dryer rate is high, saving energy and ensuring uniform and thorough dryer of the material, resulting in high quality. It can be widely used in dryer in the pharmaceutical, chemical, food, dye, and other industries.

Main Features

High thermal efficiency: More than twice as efficient as ordinary ovens, saving energy.

Indirect heating: The material will not be contaminated, meeting "GMP" requirements.

Easy operation: The equipment is easy to maintain and operate, and easy to clean.

Wide range of applications: Suitable for dryer heat-sensitive materials, easily oxidized and hazardous materials, materials requiring solvent recovery, and materials requiring low residual volatile matter.

Application Scope

Pharmaceutical industry: Used for dryer biochemical products, mineral raw materials, etc.

Food industry: Used for dryer food raw materials.

Chemical industry: Used for dryer chemical raw materials.

Specifications and Parameters

DZLG Single Cone Vacuum Ribbon Dryer: Detailed Introduction

The single cone vacuum ribbon dryer is a highly efficient and energy-saving dryer equipment, suitable for dryer granular, paste-like, and heat-sensitive materials. The equipment features a fully enclosed design, utilizing ribbon agitation to achieve complex axial and radial movement of the material.  Combined with a vacuum environment to lower the boiling point, this significantly improves dryer efficiency.

Working Principle

• dryer Process: Material is fed from the top inlet. Under vacuum conditions, the ribbon scraper and stirring rake work together, causing the material to circulate up and down along the cone wall, while the jacket is heated by a heat transfer medium (such as steam).

• Vacuum Effect: The vacuum port reduces the pressure inside the tank, allowing moisture or solvents in the material to evaporate rapidly at low temperatures and be discharged by the vacuum pump, preventing high temperatures from damaging the material properties.

• Integrated Mixing and dryer: The ribbon design ensures continuous contact between the material and the heating surface, achieving uniform dryer and mixing. dryer efficiency is 3-5 times higher than traditional equipment.

Application Scope

• Pharmaceutical Industry: Used for dryer heat-sensitive materials such as antibiotics and vitamins, ensuring that the active ingredients are not damaged.

• Chemical Industry: Suitable for dryer high-value chemicals such as catalysts, pigments, and pharmaceutical intermediates.

• Food Industry: Used for dryer foods such as milk powder, starch, and protein powder, preserving nutritional components and flavor.

• Other Industries: Such as powder and liquid mixing and dryer in the fields of pesticides, dyes, feed, and fertilizers.

Specifications and Parameters
