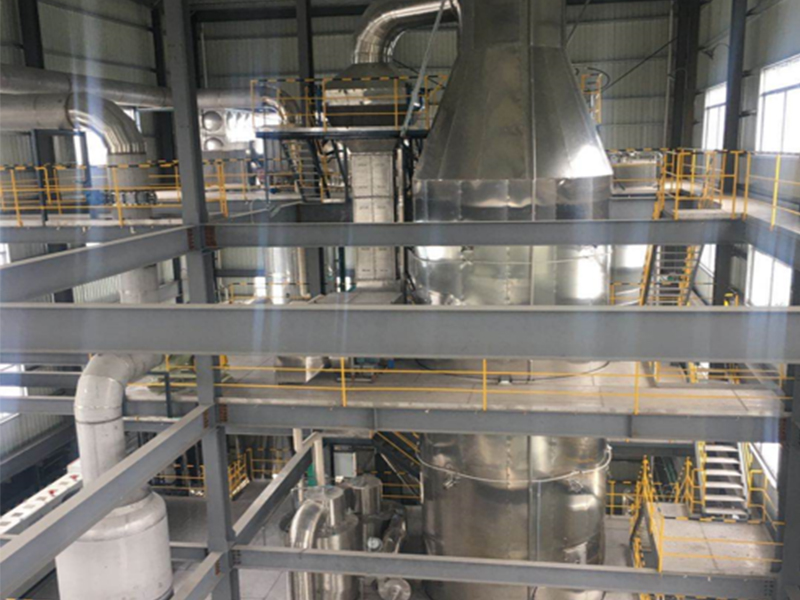

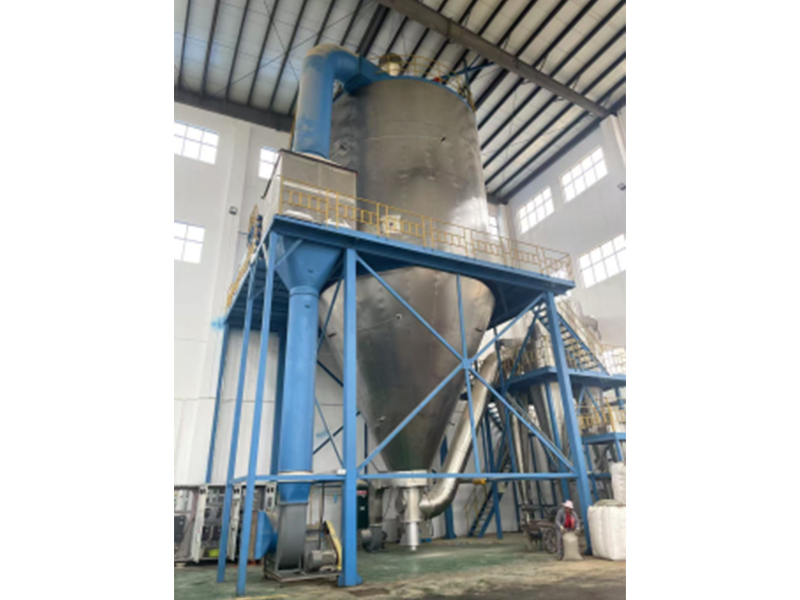

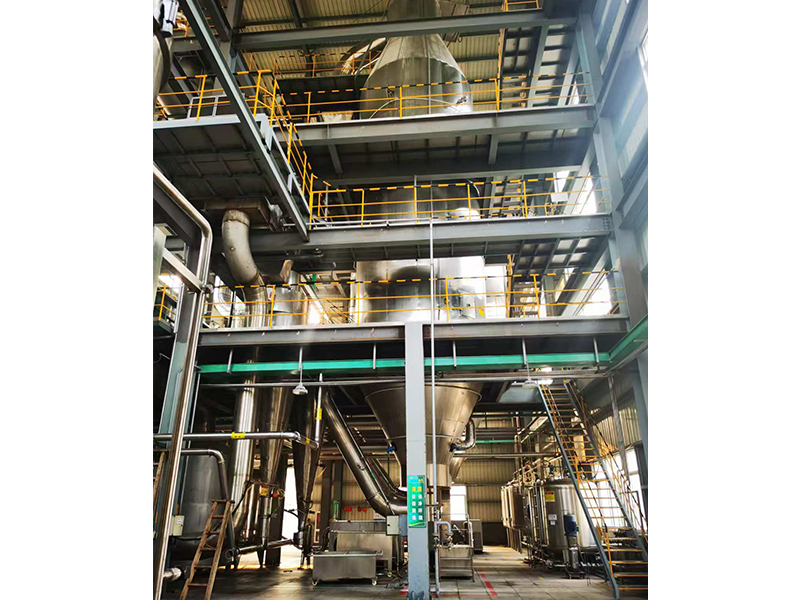

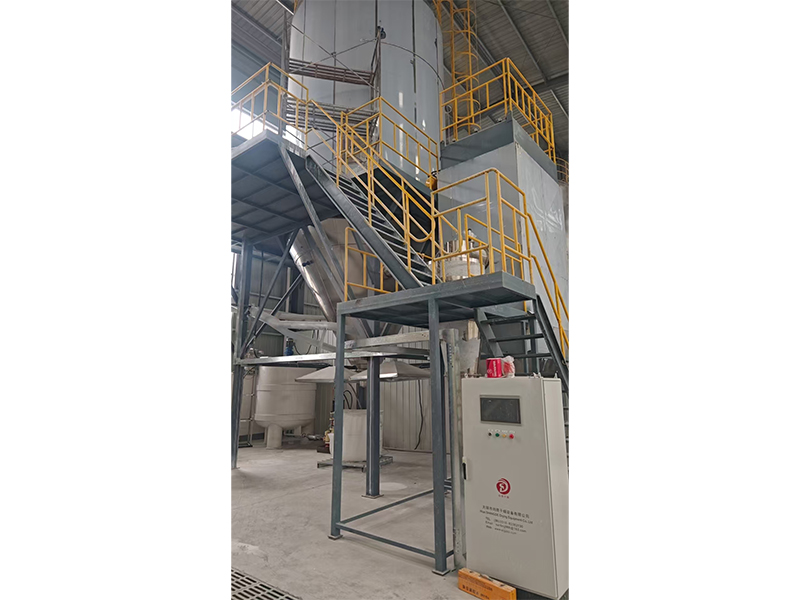

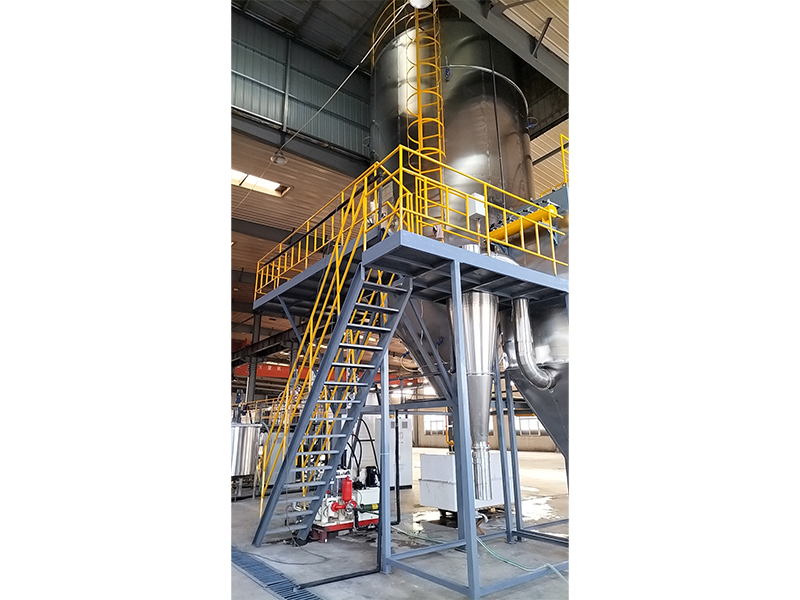

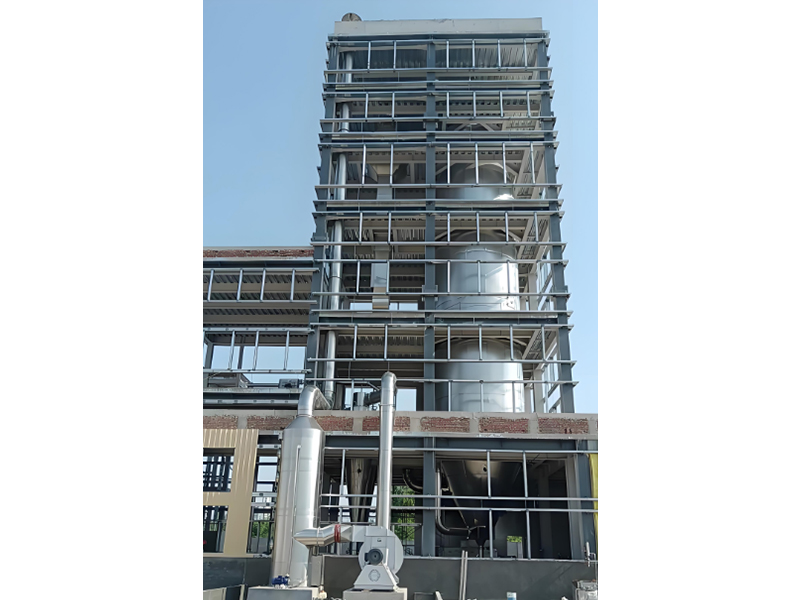

PYPG Series Pressure Parallel-flow Spray Dryer Equipment

PYPG series pressure parallel-flow spray dryer equipment

The PPG series pressure co-current spray dryer is a highly efficient dryer equipment suitable for dryer materials such as animal and plant protein extracts, fermentation concentrates, plastic additives, and soluble dyes. It produces spherical particles with a concentrated particle size distribution and good water solubility. The raw material is atomized by a high-pressure pump and mixed with hot air from the top of the dryer tower for simultaneous dryer. The pressure and flow rate of the liquid pump and the size of the spray nozzle are designed according to the product process requirements, determining the size of the spherical particles. The granular product is discharged from the bottom of the dryer tower, and the dried humid air is discharged after dust removal through a dust collection system via the central air outlet pipe.

Application Areas:

1. Food: Milk powder, soy milk powder, flavors and fragrances, natural pigments, instant tea, tea extracts, tea polyphenols, coffee powder, fruit juice powder, sea buckthorn juice, biological proteins, seafood protein peptides, vegetable powder, soy protein, soy polysaccharides, corn syrup, oligosaccharides, collagen peptides, plant extracts, chicken liver powder, enzymes, chondroitin sulfate, nutrients, etc.;

2. Feed: Blood protein, plasma globulin, feed additives, yeast fermentation liquid, etc.;

3. Chemicals: Laundry detergent, calcium pantothenate, dyes, pigments, polyphenols, catalysts, etc.

Specifications and Parameters:

YYPG Series Pressure Countercurrent Spray dryer Equipment - Detailed Introduction

The YPG pressure countercurrent spray dryer is a specialized granulation spray dryer equipment designed according to product process and particle size requirements. This pressure granulation spray dryer equipment uses high-pressure precision control to atomize the raw material into micron-sized droplets. The heated air from the heating system enters from the top of the dryer tower, while the liquid material enters the dryer chamber from the bottom center of the dryer tower, moving upwards. The hot air and liquid material are mixed, and the dryer process takes place in 5-15 seconds. The dried product is collected directly under gravity.

Application Areas

1. Ceramics: Aluminum oxide, ceramic materials, piezoelectric ceramics, zinc oxide, zirconium oxide, aluminum fluoride, ceramic slurry, glaze slurry, ferrite magnetic materials, special ceramics, etc.;

2. Chemicals: Precipitated silica, ferrite, lignin, magnesium chloride, lithium chloride, protective slag, calcium carbide, carbonates, etc.

3. Food Processing:  Processing objects include concentrated dairy products, coffee extracts, and collagen solutions. The dryer process uses nitrogen protection to prevent oxidation of heat-sensitive components.

4. Pharmaceutical Production: Used for dryer and granulation of traditional Chinese medicine extracts and antibiotic suspensions. The equipment is equipped with a CIP cleaning system and a GMP-grade sealed structure.

Specifications and Parameters

TYPG Series Precision Ceramic Dedicated Pressure Countercurrent Spray Dryer: Detailed Introduction

This precision ceramic dedicated dryer equipment is specifically designed to meet the dryer needs of high-performance precision ceramic materials. The equipment utilizes an advanced hot air circulation and intelligent temperature control system to ensure uniform and controllable temperature within the dryer chamber, effectively preventing thermal stress cracks in ceramic materials caused by temperature fluctuations. Its unique dryer chamber design, combined with efficient air distribution technology, achieves rapid and uniform dryer of materials while protecting the microstructure and performance of the ceramics. It is a key piece of equipment for improving the quality and production efficiency of precision ceramic products.

Application Areas:

New Energy Vehicles: dryer of lithium-ion battery cathode materials, improving product particle size distribution uniformity.

Consumer Electronics: Preparation of precision ceramic components such as zirconia and alumina.

Biomedical: dryer of traditional Chinese medicine extracts, meeting high purity requirements.

Semiconductor Chips: Production of high-density ceramic substrates.

Specifications
