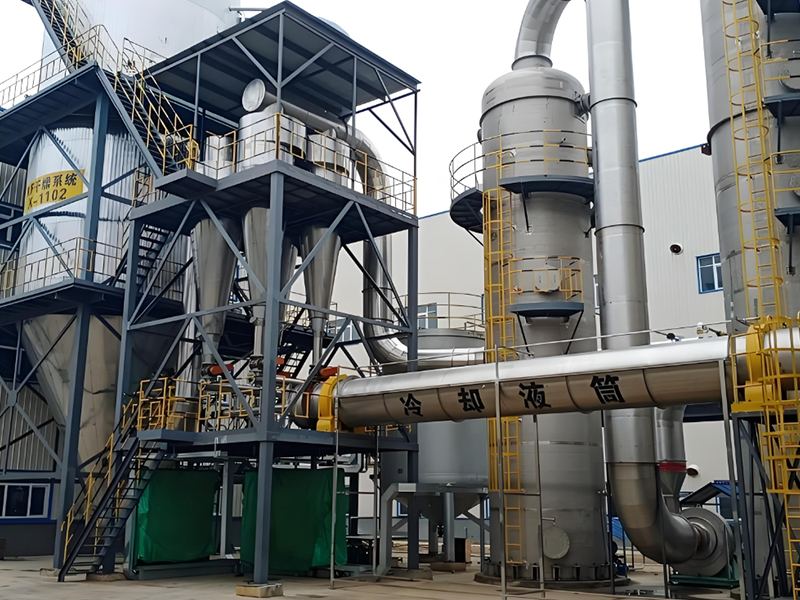

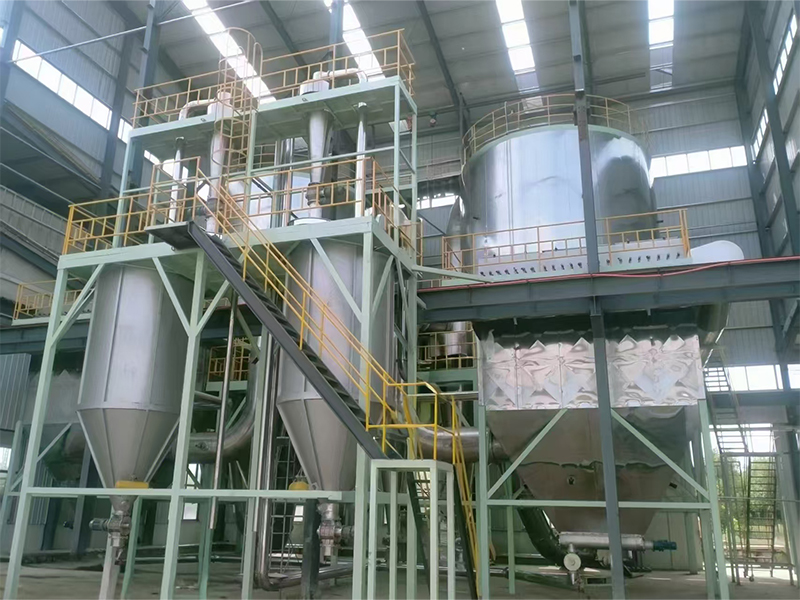

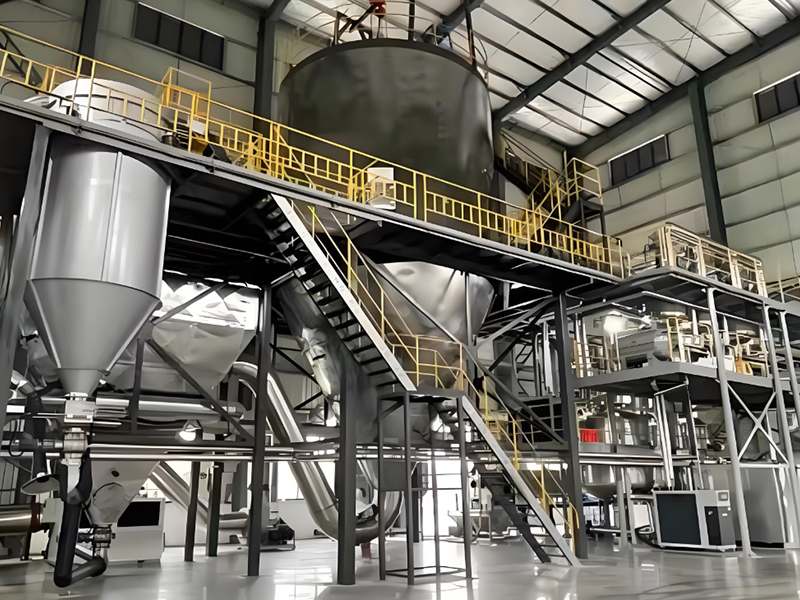

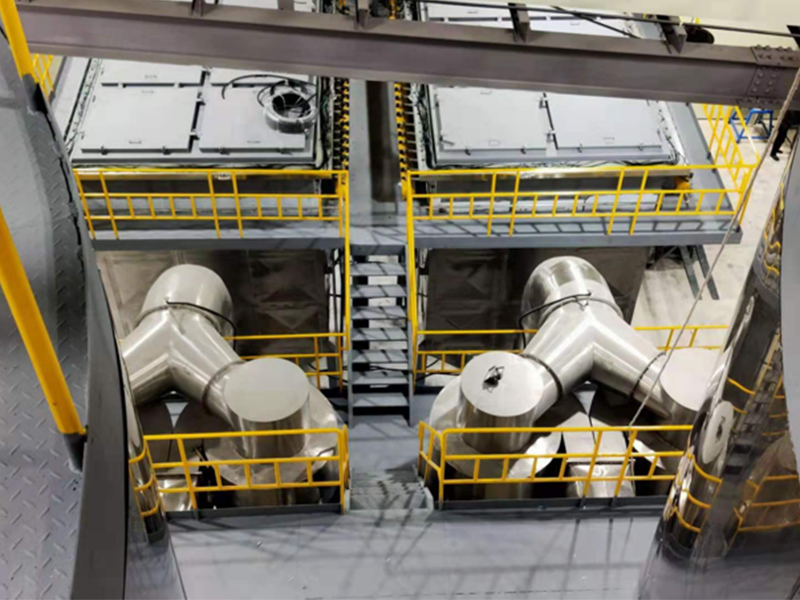

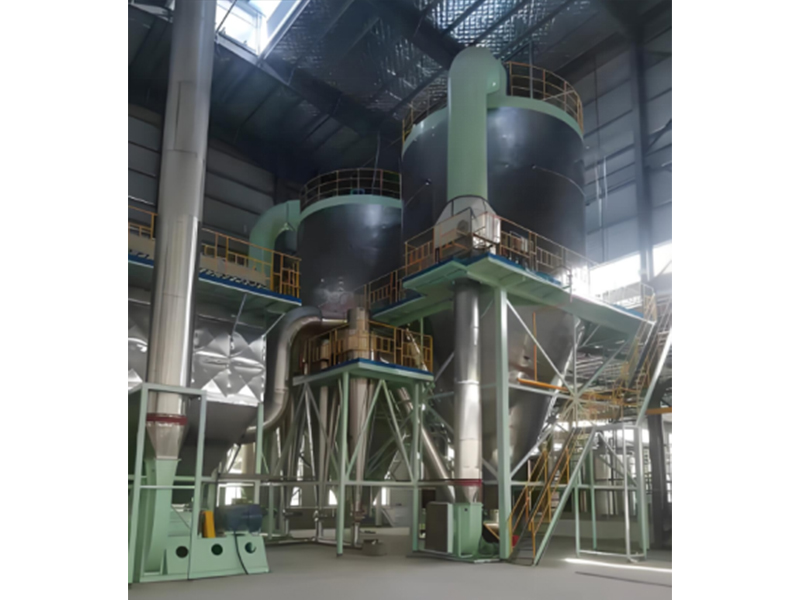

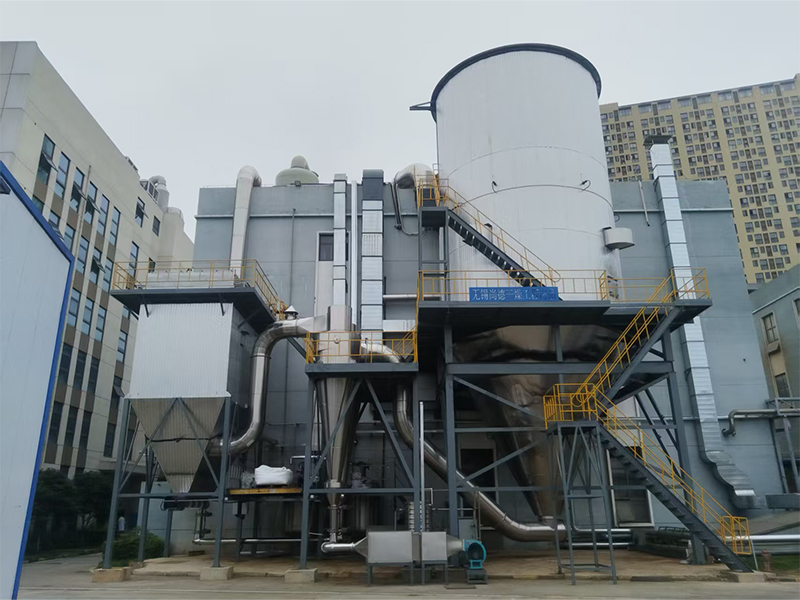

The LPG series centrifugal spray dryer is a highly efficient and energy-saving dryer equipment, suitable for producing powdered or granular solid products from liquid raw materials such as solutions and suspensions. It is widely used in food, medicine, feed, health products, new materials, batteries, chemical industry, and other industries. Its working principle is to atomize the liquid material into micron-sized droplets at a speed of 10000-30000 rpm/min through high-speed centrifugal atomization technology, and then mix and contact with hot air in a co-current flow, dryer into finished products in a very short time.
Advantages and Features of LPG Series Centrifugal Spray Dryer Equipment: Short dryer time, uniform product particles, good fluidity, strong solubility, and the ability to retain the color, aroma, taste, and other biological activities of the material. Flexible operation allows for adjustment of product particle size, bulk density, moisture content, and other parameters as needed.
Application Areas:
1. Food Additive Spray dryer: Enzyme preparations, chicken powder, flavors and fragrances, chicken and duck liver powder, vinegar powder, meat and bone meal, stevia, amino acids, etc.;
2. Protein Powder Spray dryer: Plant protein, animal protein, seafood protein peptides, microbial protein, rice protein, peanut protein, etc.;
3. Feed Spray dryer: Plasma and blood cells, whole blood powder, pig and poultry blood, protein waste liquid, algae, etc.;
4. Pharmaceutical Spray dryer: Traditional Chinese medicine extracts, Cordyceps, pharmaceutical intermediates, vitamins, Bacillus subtilis, heparin, etc.;
5. New Materials Spray dryer: Battery raw materials, lithium iron phosphate, sodium batteries, battery cathode materials, battery anode materials, graphite, magnetic materials, etc.;
6. Chemical Spray dryer: Cosmetic raw materials, astaxanthin, ceramics, potassium fluoride, manganese chloride, sodium isooctanoate, catalysts, etc.
Specifications and Parameters:
Item Model | 5 | 25 | 50 | 100 | 150 | 200 | 500 | 800 | 1000 | 2000 | 3000 | 4500 | 6500 |
Inlet air temperature℃ | 140--350 autocontrol | ||||||||||||
Outlet temperature℃ | 80---90 | ||||||||||||
Atomizing way | High speed centrifugal atomizer(mechanical transmission) | ||||||||||||
Evaporation capacity(kg/h) | 5 | 25 | 50 | 100 | 150 | 200 | 500 | 800 | 1000 | 2000 | 3000 | 4500 | 6500 |
Speed of atomizing disk(rpm/min） | 25000 | 22000 | 21500 | 18000 | 16000 | 12000----13000 | 11000---12000 | ||||||
Diameter of the atomization disc(mm） | 60 | 120 | 150 | 180---210 | According to the requirement of technical process | ||||||||
Electric heating power(kw） | 12 | 31.5 | 60 | 81 | 99 | Using other heat source | |||||||
Powder product recovery rate | About 95% | ||||||||||||
length(m） | 1.6 | 4 | 4.5 | 5.2 | 7 | 7.5 | 12.5 | 13.5 | 14.5 | Decided by the requirement of technical process, site condition | |||
Width(m） | 1.1 | 2.7 | 2.8 | 3.5 | 5.5 | 6 | 8 | 12 | 14 | ||||
Height(m） | 1.75 | 4.5 | 5.5 | 6.7 | 7.2 | 8 | 10 | 11 | 15 | ||||
